AC · YLC-MC-7C

Wall Mounted AC — single gun

The workhorse wall box: one gun, a card reader and a 4.3-inch display, from 7 kW up to 42 kW.

GB/TWall1 gun
Wall Mounted AC — single gun
7 – 42 kW
Output
5
Outputs available
1
Connectors
1
Connector standards

Available outputs

7 kW11 kW14 kW21 kW42 kW

Features

Card reader and a 4.3-inch display
Self-metering, with 8000 V board lightning protection
2G / 3G / 4G and Ethernet
GB/T 18487.1-2017 charging method C

Specification

Rated power7 kW
ModelYLC-MC-7C · 14 kW: YLC-MC-14C
Dimensions265 × 125 × 345 mm
Weight10 kg
Output7 kW · 0–32 A · 220 V AC
Input voltageSingle-phase 220 V AC
Leakage current≤ 30 mA · ≤ 0.1 s in operation
ProtectionIP54
Communication2G / 3G / 4G · Ethernet
Charging connectionGB/T 18487.1-2017 method C
BrandYao Laichong or customised

Figures are taken from the EVL catalogue and describe the base model. Full datasheets for every output come with the quote.

Gallery

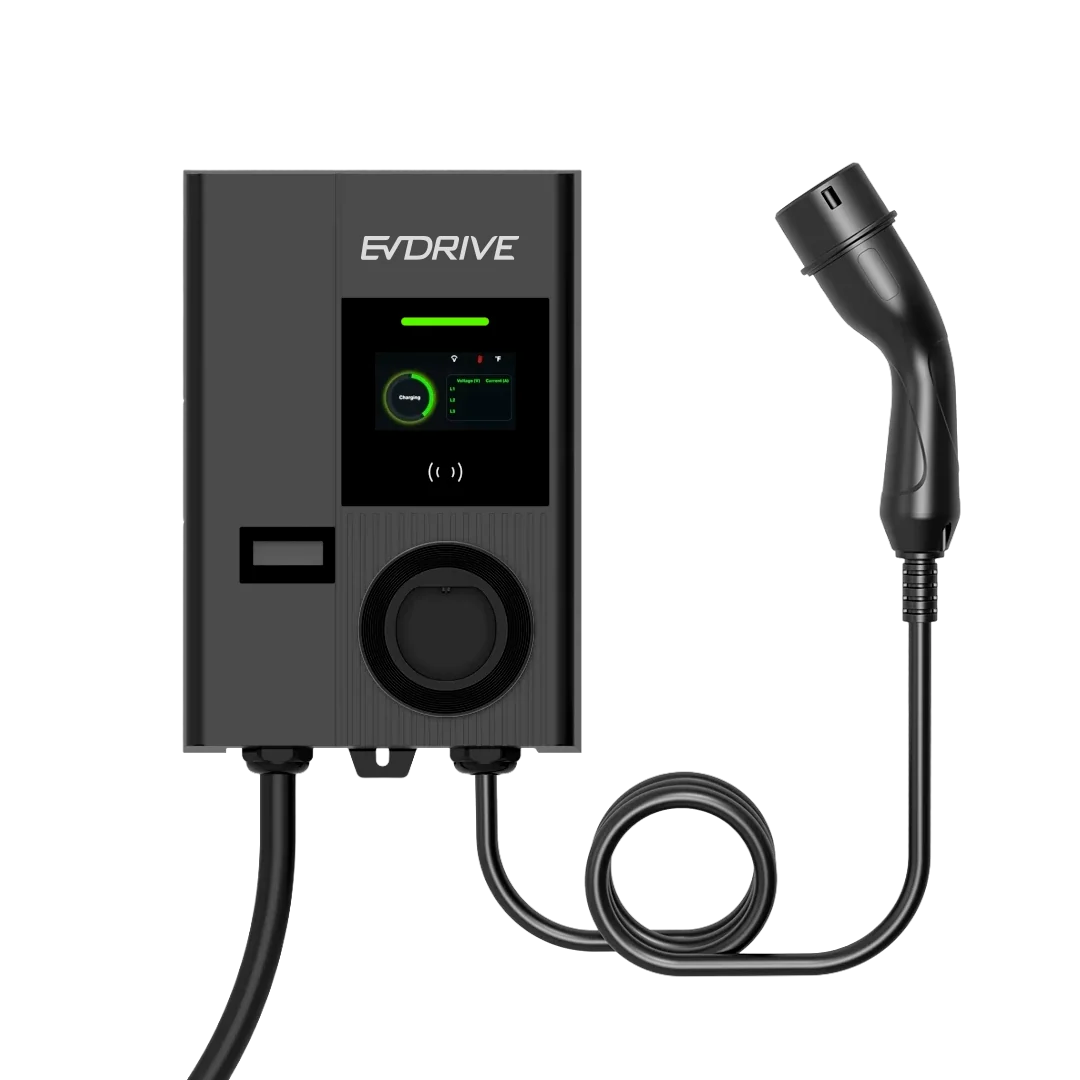

The unit.
