Wall Mounted 22 kW

The compact three-phase wall box: Type 2, GB/T or Type 1, OCPP 2.0.1, and two enclosures — one for outdoors, one slim.

Type 2GB/TType 1WallPedestal1 gun
Wall Mounted 22 kW
7.4 – 22 kW
Output
3
Outputs available
1
Connectors
3
Connector standards

Available outputs

7.4 kW11.5 kW22 kW

Features

OCPP 1.6 and 2.0.1, or stand-alone
RFID, app, plug-and-charge or scheduled
Indoor and outdoor, wall or pedestal
IP65, or IP54 / IP55 on the slim enclosure

Specification

Rated power22 kW
Connector typeIEC Type 2 · GB/T · UL Type 1
Connectors1
Efficiency99%
Cable5 m standard
Measuring accuracy1%
Dimensions310 × 224 × 128 mm · 208 × 153 × 418 mm
Weight≈ 4 kg · ≈ 4.5 kg (with standard cable)
ProtectionIP65 · IP54 single-phase / IP55 three-phase
Noise< 40 dB
Maximum altitude< 2000 m
Operating temperature−30 °C to +50 °C
Operating humidity5–95% RH non-condensing
CertificationCE (TUV) · CB · CNAS · CMA
Design standardsIEC 61851-1 · GB/T 20234.1 / 20234.2 / 18487.1 · NB/T 33002 / 33008.2 · UL 2231-2
AuthenticationRFID card · PINGALAX app (Bluetooth or Wi-Fi) · plug and charge · scheduled charging
ProtocolOCPP 1.6 · OCPP 2.0.1 · stand-alone · Modbus RTU RS485
Power ratingSingle-phase up to 7.4 kW / 32 A · three-phase up to 22 kW / 32 A · UL up to 11.5 kW / 48 A
Input / output voltageIEC 230 / 400 V AC ±15% · GB 220 / 380 V AC ±15% · UL 240 V AC ±15% · 50/60 Hz
ProtectionOvercurrent · overvoltage · undervoltage · short circuit · overload · overtemperature · ground fault · leakage · lightning

Figures are taken from the EVL catalogue and describe the base model. Full datasheets for every output come with the quote.

Gallery

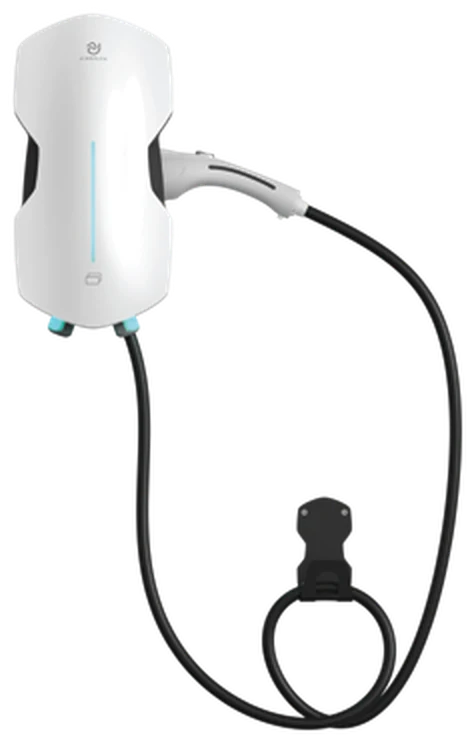

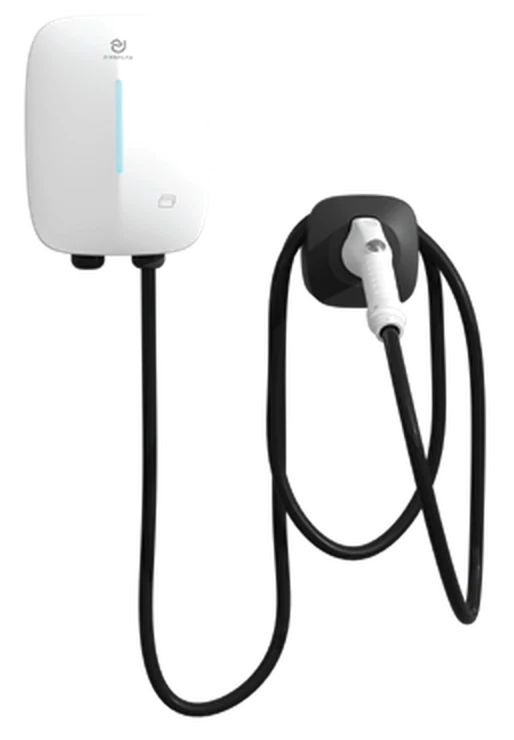

The unit.
